Rywire Infinity 506/508 (6/8h) Mil-spec Engine Harness

The Rywire AEM Infinity Engine Harness is compatible with:

B-Series Engines
D-Series Engines
H-Series Engines

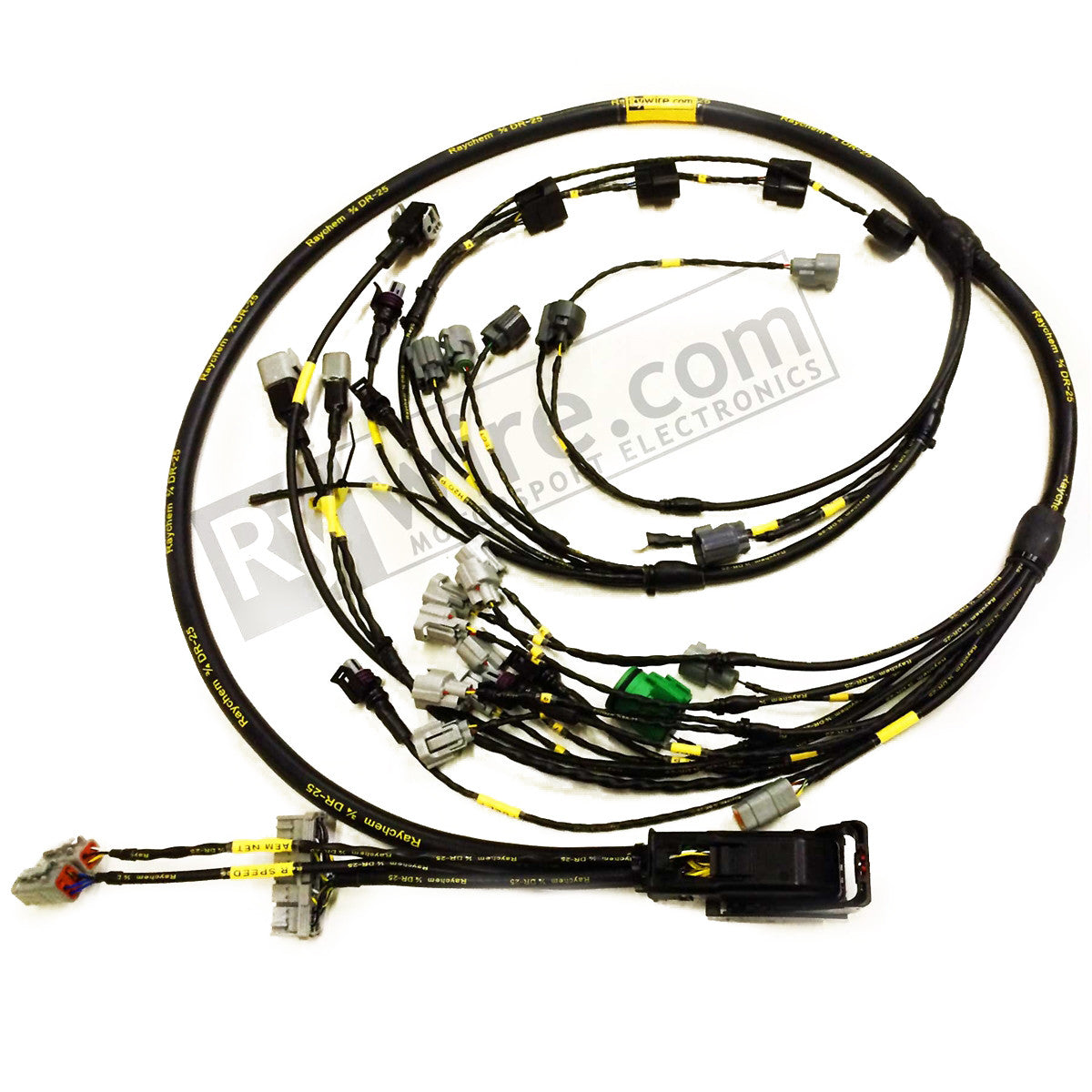

The Rywire AEM Infinity 506/508 (6/8h) harness is a universal, fully populated race loom that incorporates all the essential functionality of the fastest Front wheel drive Hondas of today!

If you are building a Front wheel drive race car and need the data and flexibility of one of the top ECUs on the market, then this is the harness for you. The AEM Infinity EMS offers some of the best functionality on the market today, and this harness packs a punch, allowing all the necessary terminations. Rywire has worked with some of the fastest front wheel drive race cars in the world to develop this harness. This harness  allows for plenty of expansion, and pre-terminated connectors exactly where you need them.

Pre-terminated for:

ECU - AEM Infinity 506 or Infinity 508 (AEM Part 30-7106 or 30-7108)

Lambda/ Uego - Bosch 4.2LSU Wideband O2 sensor

Air Temperature - AEM (AEM Part 30-2010)

Fuel Pressure - AEM (AEM Part 30-2130-100)

Oil Pressure - AEM (AEM Part 30-2130-150)

Exhaust Backpressure - AEM (AEM Part 30-2130-50 or 30-2130-75)

Manifold Pressure (MAP) - AEM (AEM Part 30-2130-50 or 30-2130-75)

CAN BUS connectivity - AEM NET (connects devices such as Loggers, AIM dash, Racepak Dash)

Throttle Position (TPS) - Factory Honda

Coolant Sensor (ECT) - Factory Honda

VTEC - Factory Honda

Speed Sensor (VSS Hydro) - Factory Honda

Reverse Lights - Factory Honda

Starter Trigger - Factory Honda

Coils - Factory Honda K-series (Smart Coils)

Ground Ring Terminals for Coils and ECU - Factory Honda

Knock Sensor - Factory Honda

Alternator - Factory Honda (OBD0/1 or OBD2 styles available)

Injectors (8 Injector) - Bosch EV1, EV14, Nippon, and others.

Infinity 506 - Up to 6 Low or High Impedance Injectors
Infinity 508 - Up to 8 High Impedance Injectors only

Boost Solenoid (MAC solenoid) - Rywire (Rywire 3 port or 4 port kit)

Rear speed expansion - Rywire (Rywire rear speed kits for MAG or Hall sensors)

FLEX FUEL capable - Rywire (Rywire flex fuel kit )

AUX expansion - (Contains power, 5V, sen ground, and 3 AV inputs)

Trigger (CAM/CRANK) - AEM/T1/Rywire (easily expandable for AEM EPM, T1 trigger, and Rywire CAM/CRANK trigger)


More info on Rywire harness Trigger system:

Rywire understands the necessity for having the best CAM and CRANK trigger possible. Knowing where the crankshaft and camshaft is in the rotation is an essential part of the engines tune, and can make or break a properly built engine.

The Rywire AEM Infinity engine harness is designed to accept:
-The AEM EPM (cam trigger) Plugs directly into loom labeled “Trigger 2”
-T1 Race Development (cam trigger) Plugs directly into loom labeled “Trigger 1”
-Rywire (cam and crank trigger) Plugs directly into loom labeled “Trigger 1” and “Trigger 2”

Chassis adapter options

This harness can plug and play into any chassis, but we recommend the Rywire standalone RACE fuse box.

This fuse box allows for a quick and easy install into any chassis, off road car, sand rail, buggy, gutted circuit or drag race car.
