Exedy Stage 2 Clutch Kit

Stage 2 "Thick Clutch" Kits: (longer life, smoother engagement)

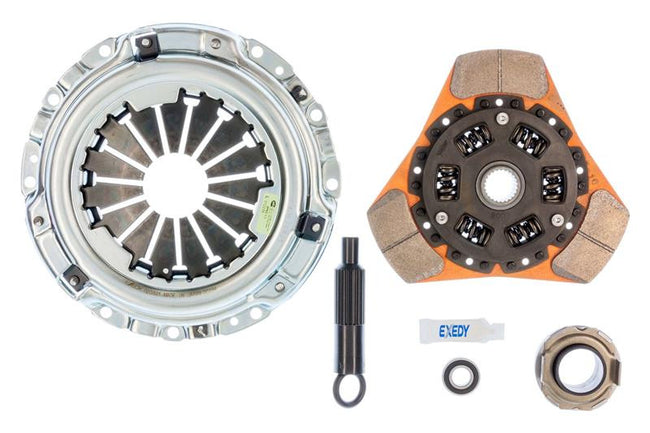

08950A:
Integra 92-93

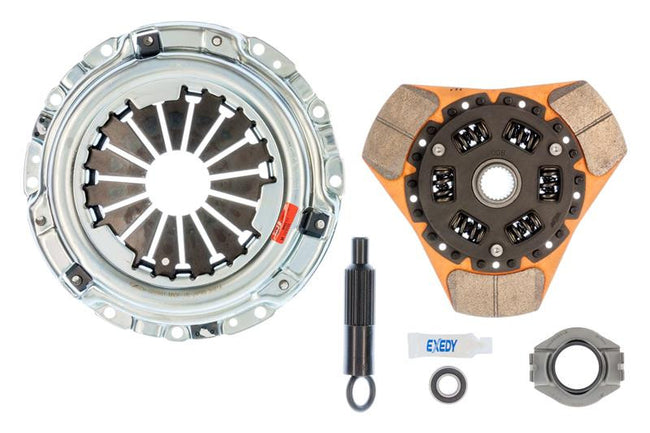

08950B:
Integra 94-01
Honda Civic Si 99-00
Del Sol VTEC 94-97 (B16A)

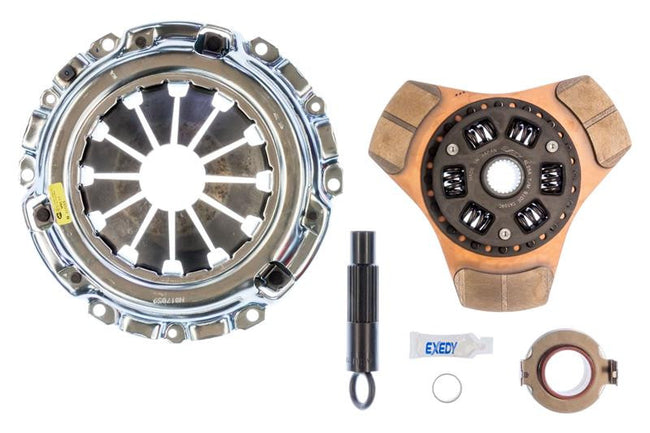

08951:
Acura RSX Type-S/Base 02-06
TSX 04-08
Honda Accord 2.4L 03-07
Civic Si 02-07

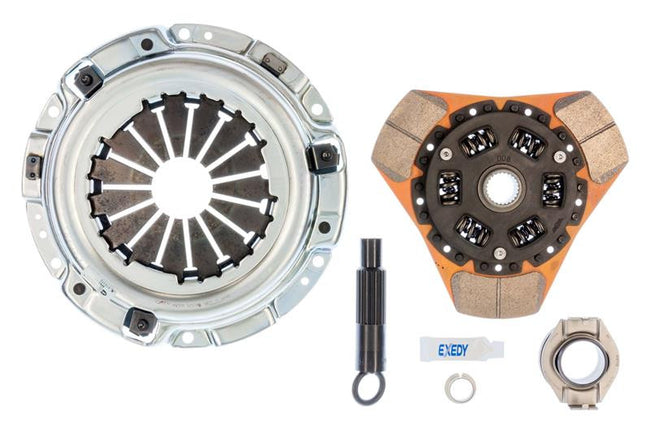

08952:
Acura 2.2CL 1997
Honda Accord 2.2L 90-97
Accord 2.3L 90-02
Prelude 2.2L 92-01
Prelude 2.3L 92-96

Stage 2 "Thin Clutch" Kits: (lighter weight, recommended for circuit use only)

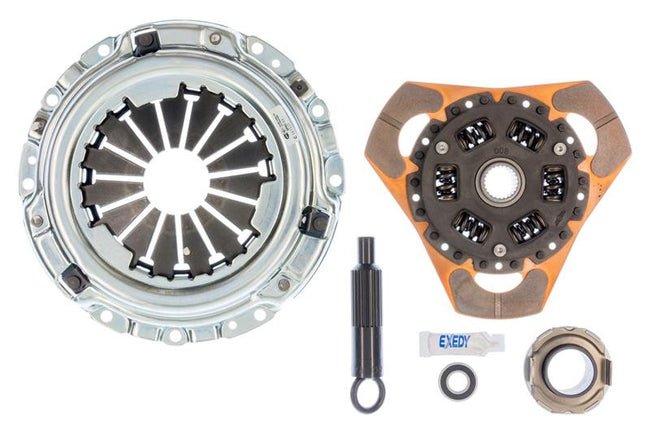

08900A:
Integra 92-93

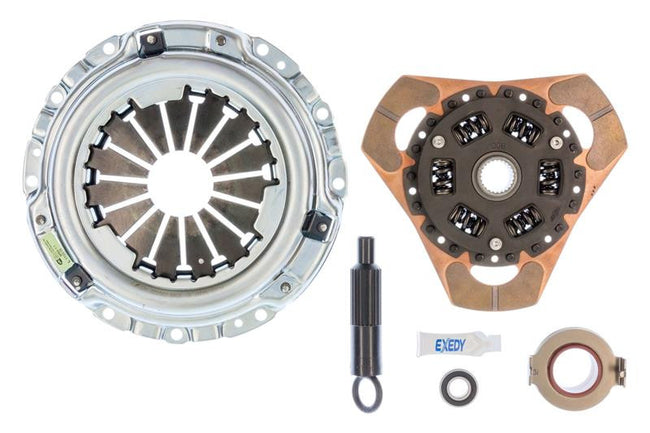

08900B:
Integra 94-01
Honda Civic Si 99-00
Del Sol VTEC 94-97 (B16A)

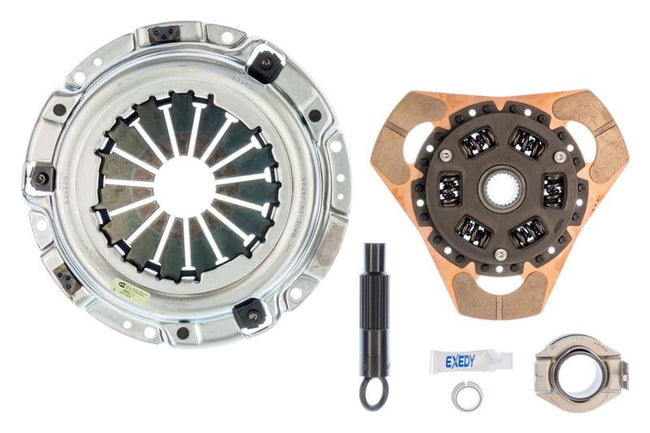

08901:
Acura 2.2CL 1997
Honda Accord 2.2L 90-97
Accord 2.3L 90-02
Prelude 2.2L 92-01
Prelude 2.3L 92-96

08903:
Integra 90-91 (B18A1)

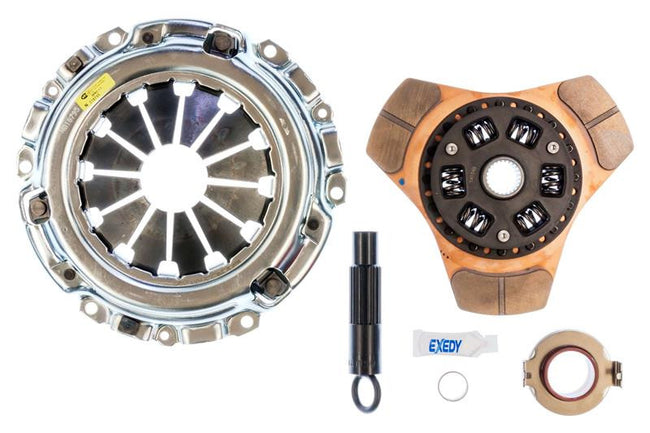

08905:
Acura RSX Type-S / Base 02-06
TSX 04-08
Honda Accord 2.4L 03-07
Civic Si 02-07

Stage 2 4-Pad Clutch Kits: (Endurance/Drag, extreme heat capacity)

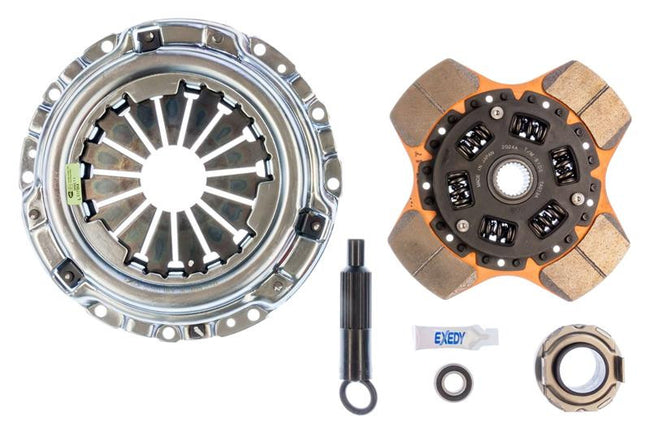

08950AP4:
Integra 92-93

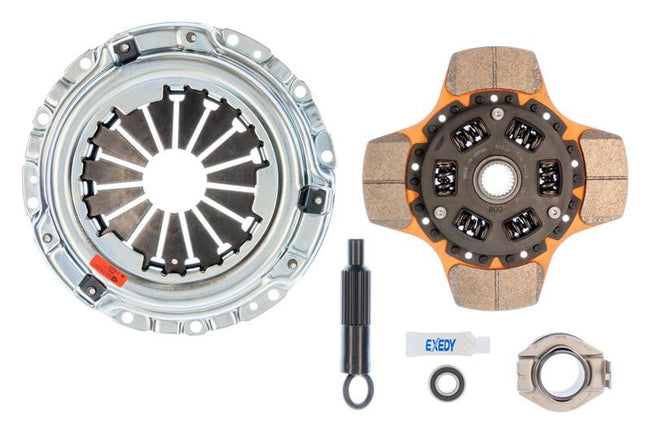

08950BP4:
Integra 94-01
Honda Civic Si 99-00
Del Sol VTEC 94-97 (B16A)

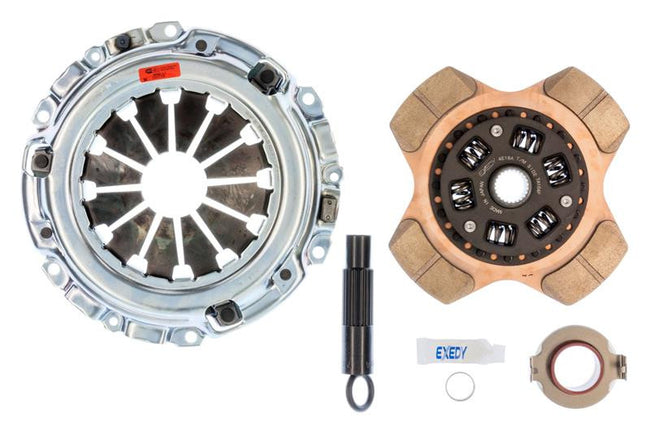

08951P4:
Acura RSX Type-S / Base 02-06
TSX 04-08
Honda Accord 2.4L 03-07
Civic Si 02-07

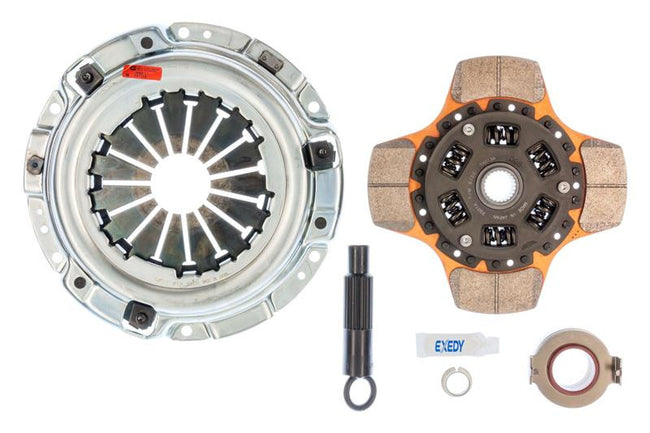

08952P4:
Acura 2.2CL 1997
Honda Accord 2.2L 90-97
Accord 2.3L 90-02
Prelude 2.2L 92-01
Prelude 2.3L 92-96

EXEDY cerametallic clutches are designed to handle the abuse of high power modified engines. Exedy cerametallic friction material can handle much more abuse than stock type disc assemblies without slipping and fading.

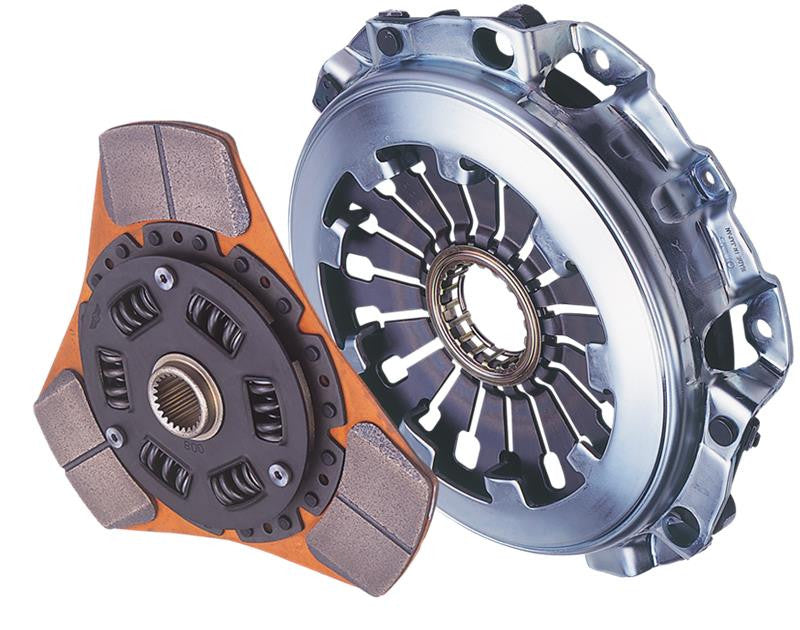

All EXEDY Stage 2 cerametallic clutch discs have sprung center dampers to reduce the impact and shock loads transmitted through the drivetrain. Exedy offers two types of cerametallic discs, “thick” and “thin” along with a cushion button disc.

The "thick" discs have better heat capacity and therefore better durability in demanding applications. Even with the "thick" disc, Exedy's three and four puck designs typically have less inertia than a stock disc and work well for street, rally and track use.

The "thin" discs offer greatly reduced inertia to improve shift effort, allow for quicker shifting, and improve synchro durability. These discs are approximately 1/2 the thickness of a stock disc and are recommended for circuit track use only.

The main feature of the 4 pad cerametallic disc is excellent heat dissipation capacity.

Under extreme conditions, such as drag racing and aggressive street driving the driver abuses the clutch excessively. This type of use tends to cause the clutch to overheat. On the 4 pad disc the increase of pad area in contact with pressure plate reduces overheating on the surface of pads. This also helps the pad life last longer than the 3 pad disc due to the larger contact area to the pressure plate and flywheel.

On the other hand, 4 pad discs have more weight than a 3 pad disc which creates more inertia when compared to that of 3 pad disc. Since a 4 pad disc creates more inertia shifting gears will feel slower. This is due to the slow synchronization in the transmission against engine rotation when the gear shift occurs. Note that the Exedy puck type discs still weighs less than full face discs due to the fact that Exedy's disc friction material is directly bonded to the drive coupling plate rather than riveted to a steel backed coupling plate on the drive plate.

Here is the comparison in inertia between OEM, 3 pad disc and 4 pad disc. The 3 pad disc has the lowest inertia followed by 4 pad disc and then the OEM disc. Although the 4 pad disc has more inertia than the 3 pad disc, the 4 pad disc still gives better shift feeling than the OEM disc. In addition, an EXEDY study has shown that the 4 pad disc has superior gear shift feeling when compared to the OEM Disc.

3 pad discs lower inertia by 20% compared to an OEM disc, which allows synchronization within the transmission to occur quicker than with the OEM disc. This helps driver shift gears smoothly and quickly.

If you are looking for a quicker gear shift, the 3 pad disc would be the best option. The 4 pad disc still gives you a better gear shift feeling than the OEM clutch with an excellent heat dissipation capacity which can result in longer clutch life.
