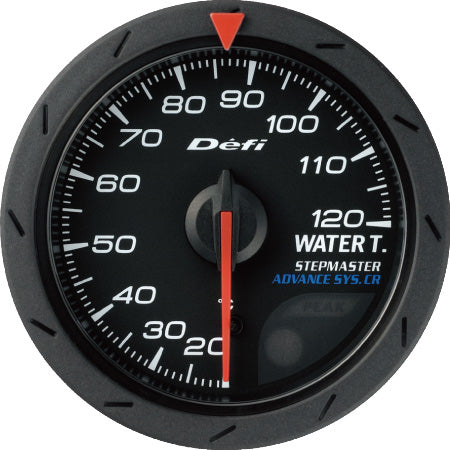

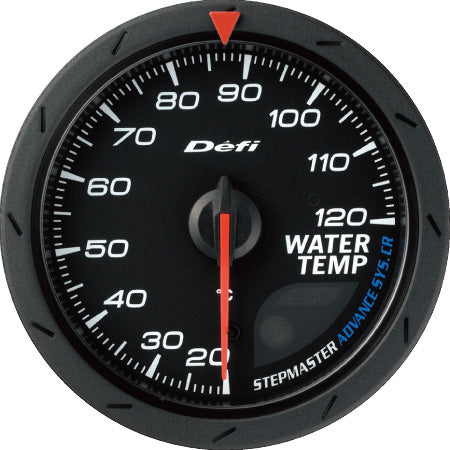

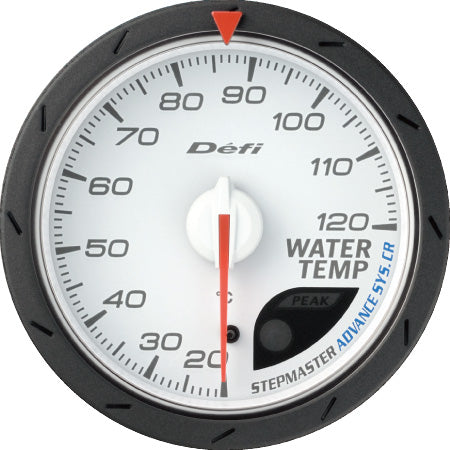

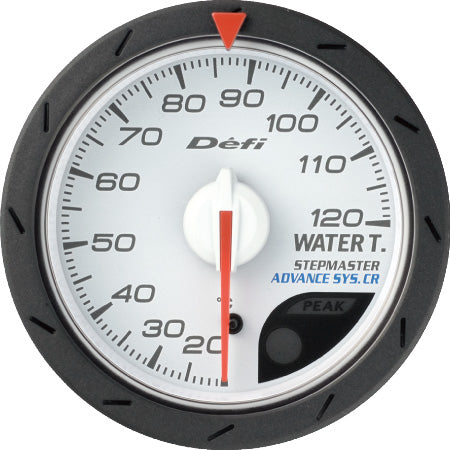

Defi-Link Meter ADVANCE CR - Water Temperature

This product has been discontinued by the manufacture and is no longer available for purchase. The page is left intentionally for reference.

Defi-Link Meter ADVANCE CR is gauge series which need to be connected to Defi-Link ADVANCE Control Unit.

*Defi-Link ADVANCE Control Unit (sold separately) is necessary to operate CR gauges.
*Defi-Link Meter ADVANCE CR is expressed as ADVANCE CR or CR gauges.
Turbo/boost/in-mani, oil press, fuel press, oil temp, water temp, exhaust temp, and tachometer are available.
Color: White and black dials are available.
Size: 52mm and 60mm are available. (Only 60mm is available regarding turbo120kPa, in-mani, fuel press, exhaust temp, and tachometer.)
Illumination color: Can be changed between two colors.
White dial: Blue/Amber red
Black dial: White/Amber red
One ADVANCE Control Unit operates up to 7 gauges or displays in total.


Main specifications, functions, and features
ADVANCE System
ADVANCE Control Unit necessary
Commercial attachment necessary
Stepping motor: STS26/VS2
Display color: dial white/black
Illumination color: Black dial->white/red, White dial->blue/red
Illumination ON/OFF: interlocked with vehicle illumination switch
LED illumination
Indicator output
Built-in indicators
Driving data can be recorded & replayed
Opening mode/Ending mode
Size: 52mm/60mm
Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
Mounting bracket attached
