ASR Swaybar & Bushing Kit

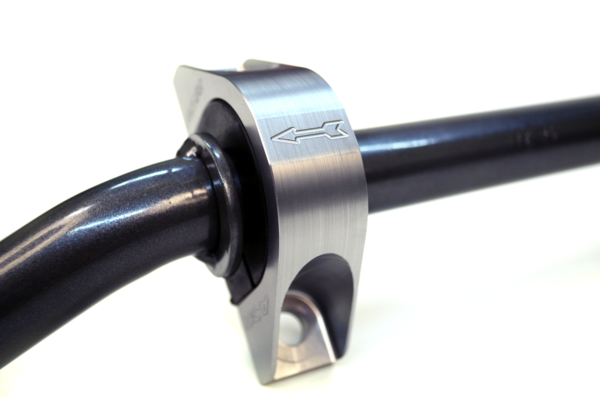

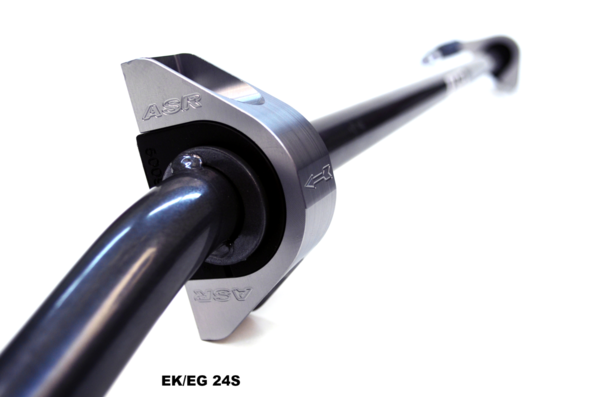

Improve your vehicles handling dynamics with the ASR swaybar kit. This is the perfect upgrade to bolt on to your existing ASR subframe brace. The machined billet aluminum brackets with polyurethane bushings ensures proper mounting and fitment to your ASR brace. This product was designed for longevity and performance under street and track driving conditions.*

 ASR 24mm Swaybar (Street/Track)

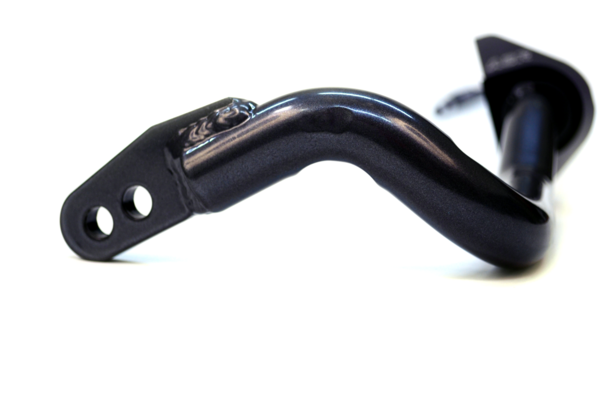

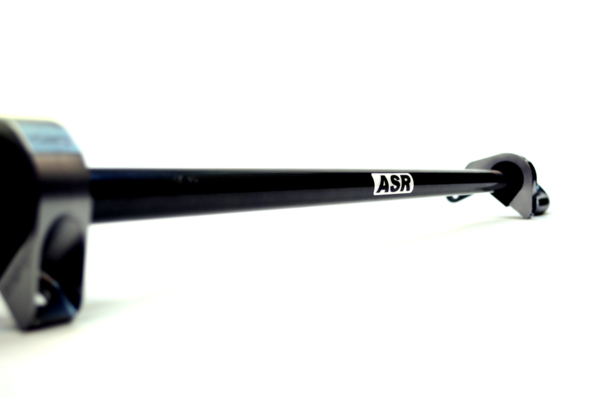

The ASR 24mm swaybar is the perfect bar for a those looking for a startup setup. It features a swaybar that is the same dimensions and look as a OEM swaybar but is significantly stiffer due to its increased diameter.

ASR 1" Hollow Swaybar (Street/Track) (Discontinued)

The ASR 1" hollow bar is the first of its kind. Featuring a hollowed out core this bar is significantly lighter than our 24mm swaybar. The 1" swaybar also keeps the same dimensions as a OEM swaybar but is even stiffer than our 24mm swaybar due to the increased diameter.

 Contents:

1 - ASR 24mm or 1" Swaybar

1- Fitting Kit (comes with 1" swaybar only)

2 - ASR D-bracket bushings

2 - ASR billet aluminum D-brackets

1 - Energy Suspension grease

 *This kit does not come with ASR endlinks

 MADE IN U.S.A.

 Swaybar Rate Comparison

OEM ITR 22 mm Bar

          Measured bar rate:

          P1 = 51 N/mm (292 lbs/in)

          Bar weight: 3.78 kg (8.4 lbs)

 OEM ITR 23mm Bar

          Measured  bar rate:

          P1 = 60 N/mm (347 lbs/in)

  ASR Gray bar: 23.8mm (.937 in) Solid, 2 Position adjustable

          Measured bar rate:

          P1 = (414lbs/in)
          P2 = (507lbs/in)

          weight: 4.4 kg (9.7 lbs)

 ASR Red bar: 25.4 mm (1 in) Hollow, 3 position adjustable (Discontinued)

          Measured bar rate:

          P1 = 73 N/mm (418 lbs/in)
          P2 = 94 N/mm (533 lbs/in)
          P3 = 111 N/mm (630 lbs/in)

         weight: 3.15 kg (7.0 lbs)
